Inset
|
Toolbar |
Menu |
|---|---|
|
|
SubD/Mesh Edit Tools > Inset |
The Inset command inserts edges by offsetting the edges of selected mesh, SubD, or polysurface faces a certain distance inwards.
输入
- Mesh/SubD faces
- Surfaces and polysurface faces
插入选定的面
-
Select mesh, SubD, or polysurface faces.
-
输入一个距离或选择两个点来定义距离。
指令行选项

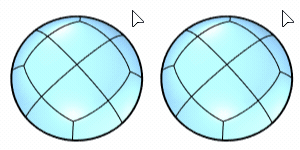

模式 (仅适用于多个细分面输入时)
群组 (左) 是将连接的面作为一个整体插入。
单一 (右) 是对选择的面进行逐个插入。
(Surface-only options below)
ThroughPoint
Pick a point for the inset curve to pass through.
Loose
Loose=On does not refine the inset curves to be in the system tolerance as Loose=Off does. The refinement process could be time consuming so the preview uses Loose=On to speed up.
IgnoreSeams
Ignores the seam of the input surface.
CreaseCorners
Splits the face between each pair of corners.
-
If the face boundary has non-straight edges, additional splitting edges will be added.
分割
Splits the input surface; otherwise creates the inset curves only.
JoinOutputs
When Split=Yes, specifies whether the resulting surfaces will be joined.
Mesh/SubD face loop selection (Post-selection)
To select an entire face loop
-
Click a face.
-
Double-click the next face that decides the loop direction.
To select a face loop range
-
Click two faces in a loop.
-
Double-click a face in between and next to one of the selected faces.
Select a face loop using pre-selection
Select a face loop using sub-object filter
To deselect a single face
-
Ctrl+click a selected face.
To deselect a face loop
-
Ctrl+double-click a face in a selected loop.
