Split 指令旨在以一个物件分割另一个物件。
附注
- 使用 Untrim 指令可以移除曲面的修剪边界。

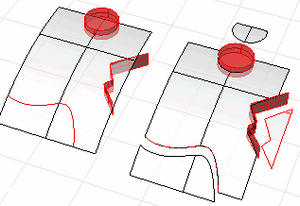

- 在正对工作平面 的平行视图 (例如：预设的 Top、Front、Right 视图) 以曲线分割曲面时，曲线会往视图的方向投影至曲面上将曲面分割。
- 在非正对工作平面的平行或透视视图 (例如：预设的 Perspective 视图) 中以平面曲线分割曲面时，曲线会往与它的曲线平面垂直的方向投影到曲面上将曲面分割。
- 在非正对工作平面的平行或透视视图中以 3D 曲线分割曲面，曲线会被拉回到曲面上的最近点将曲面分割。
-
To split a polysurface in a non-plan view, if the cutting curve has any portion evaluated as not completely lying on the polysurface, the Split command will fail as designed.
步骤
指令行选项
点 (仅适用于输入物件为曲线的情况)
在曲线上指定分割点。
结构线 (仅适用于输入物件为曲面的情况)
以曲面自己的结构线分割曲面，这个选项只有在被分割的物件是单一曲面时才有作用。
使用交点物件锁点可以锁定曲面结构线的交点。
循环边缘（仅限细分物件）
沿着选定的循环边缘分割细分物件。
步骤
- 选取细分物件。
- 选取循环边缘以分割细分物件。
锐角

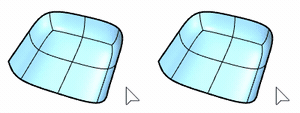

指定是否要将分割后的角转化为锐角。
Mesh/SubD edge loop selection
To select an entire edge loop
-
Double-click an edge.
To select a range of edge loop
- Click two edges in the loop.
-
Double-click an edge in between.
To deselect an edge loop
-
Ctrl(CMD)+double-click an edge in a selected loop.
Mesh/SubD edge ring selection (Post-selection)
To select an entire edge ring
-
Click an edge.
-
Alt+double-click the next edge in the ring.
To select a range of edge ring
-
Click two edges in the ring.
-
Alt+double-click an edge in between and next to one of the selected edges.
To deselect an edge ring
-
Ctrl(CMD)+Alt+double-click an edge in a selected ring.
Mesh/SubD face loop selection (Post-selection)
To select an entire face loop
-
Click a face.
-
Double-click the next face that decides the loop direction.
To select a range of face loop
-
Click two faces in the loop.
-
Double-click a face in between and next to one of the selected faces.
To deselect a face loop
-
Ctrl(CMD)+double-click a face in a selected loop.
Flood fill mesh/SubD face selection within a boundary (Pre-selection)
To select all faces within a boundary of edges or faces
-
Select edges or faces to define a boundary.
-
Click a face surrounded by unselected faces.
-
Double-click the face again.
Mesh/SubD vertex chain selection (Post-selection)
To select an entire vertex chain
-
Click a vertex.
-
Double-click the next vertex that decides the chain direction.
To select a range of vertex chain
-
Click two vertices in the chain.
-
Double-click a vertex in between and next to one of the selected vertices.
To deselect a vertex chain
-
Ctrl(CMD)+double-click a vertex in a selected chain.
Surface tangent edge chain selection (Post-selection)
To select a tangent edge chain
-
Double-click a surface edge in the chain.
To deselect a tangent edge chain
-
Ctrl(CMD)+double-click an edge of a selected chain.
