MeshIntersect
| Toolbar | Menu |
|---|---|
|
|
Curve Curve From Objects > Intersection of Meshes |

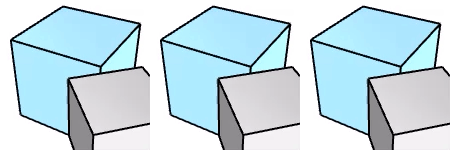

MeshIntersect 指令在网格物件交集的位置建立多重直线。
步骤
- 选取物件。
指令行选项
Tolerance
Auto
Uses a tolerance that is more suitable for well-drawn meshes created using document tolerances. The value is computed using heuristics.
Literal
Uses document tolerances. This might not be the best value because meshes often have tiny features that might fall well below the document tolerance.
请参考
Intersect
Create point objects or curves at the intersections of curves and surfaces.
MeshSelfIntersect
Creates polylines from self-intersections of mesh objects.
