Contour
| Toolbar | Menu |
|---|---|
|
|
Curve Curve From Objects > Contour |

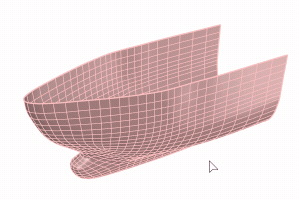

The Contour command creates planar curves, points, or hatches by intersecting evenly spaced planes with the input objects.
步骤
-
选取用于建立等高断面线的物件。
-
指定基准点。
The contour planes will be generated starting from the base point towards both directions.
-
Pick a direction that is perpendicular to the contour planes.
-
Specify the distance between contours.
The contour planes will be perpendicular to the current CPlane.
指令行选项
范围
Creates the contours within the specified range.
AssignProperties
以目前的图层
Creates contours on the current layer with object properties set to By Layer.
ByInputObject
Creates contours that inherit object properties from the input objects.
输出
All
The contours can be curves, points, or hatches.
Hatch creation is based on the input object's section style properties, and only for closed contours.
If the object's section style is By Clipping Plane, hatches will not be created.
CurvesOnly
The contours can be curves or points. Hatches will not be created.
按等高平面分组
Places the contour objects on the same plane in a group.
步骤
-
选取用于建立等高断面线的物件。
-
Pick a point for the base contour plane.
-
Pick another point to define the direction perpendicular to the contour planes.
-
Specify the distance between contours and press Enter.
Contours are created at where the contour planes intersect the objects.
| Toolbar | Menu |
|---|---|
|
|
Curve Curve From Objects > Section |

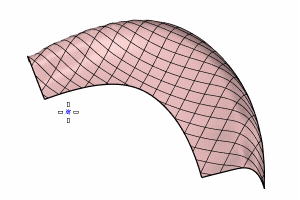

The Section command creates planar curves, points, or hatches by intersecting a plane with the input objects.
步骤
指令行选项
延伸剖面
Specifies whether the section plane will extend beyond the picked points.
AssignProperties
以当前图层
Creates sections on the current layer with object properties set to By Layer.
ByInputObject
Creates sections that inherit object properties from the input objects.
输出
All
The sections can be curves, points, or hatches.
Hatch creation is based on the input object's section style properties, and only for closed sections.
If the object's section style is By Clipping Plane, hatches will not be created.
CurvesOnly
The sections can be curves or points. Hatches will not be created.
以剖切平面分组
Places the objects created by the same section plane in a group.
