ChamferSrf
| Toolbar | Menu |
|---|---|
|
|
Surface Chamfer Surfaces |
ChamferSrf 指令在两个曲面之间建立斜角曲面。
步骤
Select the first and second surfaces.
Click the surfaces on the side you want to keep after chamfering.
Warning
曲面圆角就像是以一个指定半径的球体沿着曲面的边缘滚动，如果曲面转角的半径小于这个球体的半径会造成圆角运行失败。
指令行选项
距离
两个曲面的交线至斜角曲面边缘的距离。
延伸
When one input surface is longer than the other, the chamfer surface is extended on the longer edge.
修剪
Trims the original surfaces to the intersections with the resulting surface.
History is supported when the Trim=No.
分割
以结果曲面分割原来的曲面。
| Toolbar | Menu |
|---|---|
| Surface Fillet Surfaces |

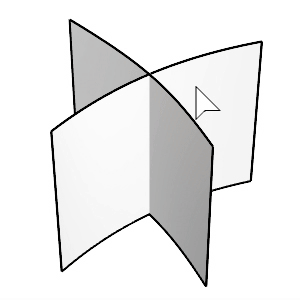

FilletSrf 指令在两个曲面之间建立半径固定的圆角曲面。
步骤
Select the first and second surfaces.
Click the surfaces on the side you want to keep after filleting.
Warning
曲面圆角就像是以一个指定半径的球体沿着曲面的边缘滚动，如果曲面转角的半径小于这个球体的半径会造成圆角运行失败。
Tips
- Always fillet from the largest radius to the smallest radius across a model.
- Remove any edges you can prior to filleting with MergeAllCoplanarFaces or by way of surfacing in a simpler manner. Fewer intersected edges = Fewer problems as the fillet rolls along any edges and tries to trim and join with the adjacent surfaces.
- Make sure there is enough room for the fillet surface to trim and join with adjacent surfaces. The angle relationships between surfaces, sharpness of the bend in the rail around corners and rail type all play a part in any particular case.
Command-line options
Radius
Sets the radius of the fillet surface. It will be the initial value of the Radius slider in the options dialog
Options
Radius
Move the slider to change the radius, or double-click on the slider to enter a value.
Range
Click a number button to change the range of the slider for smaller or larger adjustment.
Blend Type
Arc
Creates a fillet surface with arc sections and tangent (G1) to the input surfaces.
Deformable
Adds more control points to the fillet sections for adjusting tangency and bulge.
Deformable degree
Sets the degree of fillet sections from 3 to 5.
Tangent
Moves the second points on both ends in the tangent direction.
Bulge (For degree 4 and 5)
Moves the point(s) in the middle to make the fillet sections sharper or flatter.
G2 Blend
Creates a blend surface connecting to the input surfaces with curvature (G2) continuity.
Trim
Uses the output surface to trim the input surfaces when possible.
History is supported only when the Trim checkbox is disabled.
延伸
If one input surface is longer than the other, the output surface is extended along the longer edge.
