剖面线属性

Toolbar

Menu

Shortcut

Popup
Properties
Standard

Edit

Object Properties

Window

Panels > Properties

F3

剖面线属性管理选取的剖面线的物件属性。

剖面线属性

剖面线图案

剖面线图案名称和预览缩略图。

导入

从 .3dm 或 .pat 文件导入剖面线图案。

Base point

Displays the starting coordinates of the hatch pattern.

  • Click the ... button to pick the new location in the viewport by mouse.

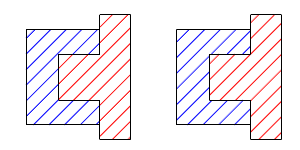

Two hatches of the same pattern with (left) and without (right) the same base point.
Rotation

The rotation angle of the pattern.

  • Click the ... button to pick the rotation angle in the viewport by mouse.

Hatches with History:

  • Changing the pattern rotation angle will not break History.
  • Rotating the hatch with its boundary curve will not break History. The pattern rotation angle will update.
  • Rotating the hatch alone will break History.

Hatches without History:

  • Rotating the hatch will update the pattern rotation angle.
Scale

The scale factor of the hatch pattern.

Show Boundary

Displays the boundary curve around the hatch pattern.

  • Curve settings in display mode options control the color and thickness of hatch boundaries.

颜色

Background

The color fills the hatch boundary.

Display Color

The hatch pattern displays this color when Fill Style is set to Solid.

填充样式

Fill styles set the hatch pattern to use a single color or different types of gradient colors.

实体

Uses the Display Color above.

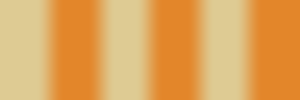

线性对称

Uses linear gradient colors that mirror on repeat.

The color gradient repeats seamlessly.

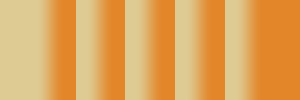

线性融合

Uses linear gradient colors that do not mirror on repeat.

The color gradient repeats with seams.

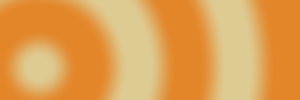

径向对称

Uses radial gradient colors that mirror on repeat.

The color gradient repeats seamlessly.

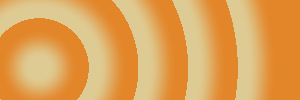

径向融合

Uses radial gradient colors that do not mirror on repeat.

The color gradient repeats with seams.

渐变停止位置

在渐变梯度段中使用百分位置定义颜色停止点的颜色。

Gradient controls

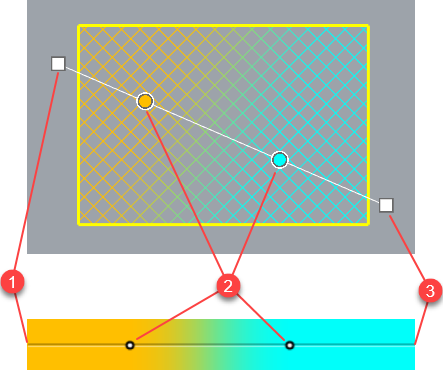

The gradient controls allow using more than one color in a hatch. The color transition is smooth between colors. Gradient controls can be edited in the dialog or viewports. The start (1) and end (3) points define the gradient span. Color stops (2) define colors in the gradient.

对话框中的操作

  • 在对话框中的一个颜色停止点上按住 Shift 键单击或双击可编辑颜色。

  • 对话框中的渐变梯度段上右键单击一个位置可添加新的颜色停止点。

  • Click the Edit button to edit the gradient in viewports.

Reverse Gradient Colors

Reverses the colors of the gradient.

Reset Gradient Boundary

Moves the start and end points on gradient controls in viewports to the default locations.

Repeat

Controls how many times the gradient span repeats between the start and end points.

重复不会超出起点和终点。

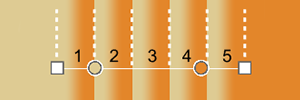

线性渐变重复次数为 5 。

  • Enter the repeat value

    Or, click the ... button to set the repeat value by picking the repeat distance in viewports.

编辑

使用指令行选项编辑工作视窗中的渐变设置。

Match

更改剖面线属性以匹配不同的剖面线。
