MeshPlane

Toolbar Menu

Mesh Creation

Mesh

Polygon Mesh Primitives >

Plane

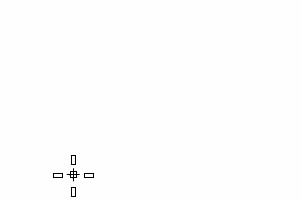

MeshPlane 指令建立一个矩形的网格平面。

步骤

  1. 指定对角的两个点绘制基础矩形。

    或者，选择其中一个选项以不同的方式绘制矩形。

  2. 指定细分矩形平面在 X、Y 方向的面数。

指令行选项

(Default)

Draws the rectangle using two opposite corners.

3Point

Draws the rectangle using two adjacent corner locations and a location on the opposite side.

EdgeMidpoint

Draws the rectangle from the midpoint of the first edge, an end of the edge, and a location on the opposite side.

Vertical

Draws the rectangle perpendicular to the construction plane.

Center

Draws the rectangle from the center point and a corner.

AroundCurve

Draws a rectangle perpendicular to a curve.

Steps

  • Select a curve and pick the center of the rectangle on the curve.
X 数量

输入 X 方向面的数量。

Y 数量

输入 Y 方向面的数量。

  • 输入大于 0 的一个数字并按 Enter 键可为两个方向设置相同的面数。当输入数字 0 时将指定当前工作平面原点作为矩形的第一角。
