Fillet
| Toolbar | Menu |
|---|---|
|
|
Curve Fillet Curves |

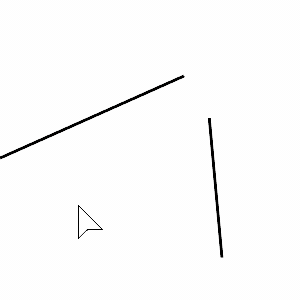

Fillet 指令修剪或延伸两条曲线的端点，再以一个正切的圆弧连接两条曲线的端点。
步骤
-
在靠近端点处的位置点选第一条曲线。
-
在靠近端点处的位置点选第二条曲线。
指令行选项
半径
更改圆角半径。
组合
Joins the fillet arc to the input curves.
修剪
Trims the input curves to the fillet arc.
圆弧延伸方式
This option is applied when the input curve is an arc and it needs to extend to meet the fillet arc.
圆弧
The arc is extended maintaining its radius.
直线
The arc is extended with a tangent line.
ExtendOtherCurvesBy
This option is applied when the input curve is not a line or an arc, and it needs to extend to meet the fillet arc.
Dynamic
Enables interactive preview when picking two points or typing the number for the radius.
| Toolbar | Menu |
|---|---|
|
|
Curve Fillet Corners |

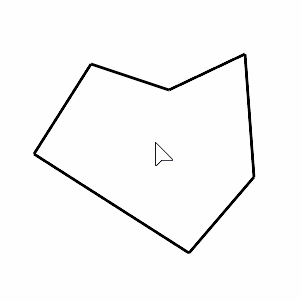

FilletCorners 指令以单一半径在多重曲线或多重直线的每一个角建立圆角。
